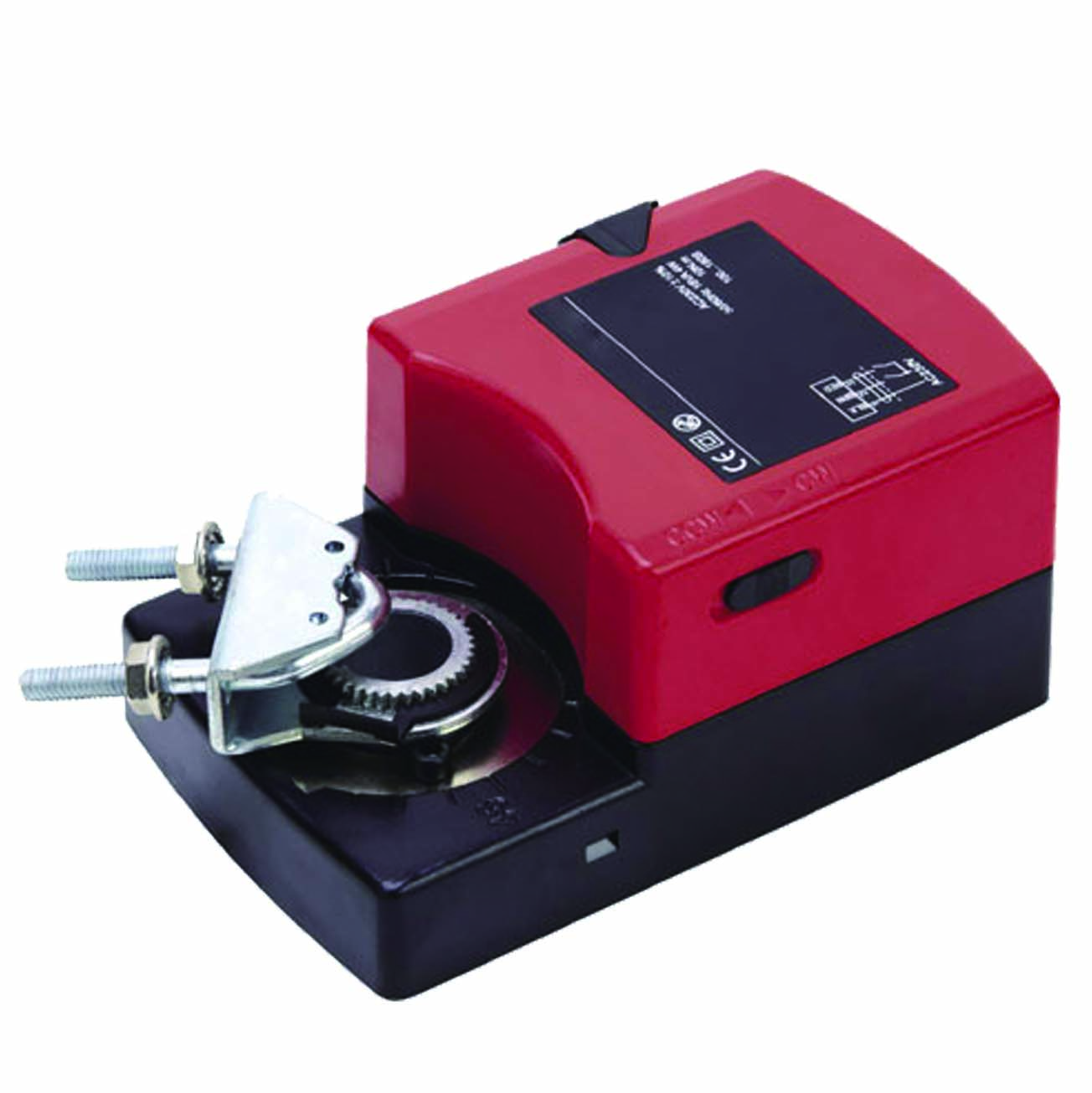

Floating/Modulating Damper Actuator

Model No.：TD02/04 TA02/04 TD06/10 TA06/10
Certification:ROHS&CE
Product description: On/off/Floating/Modulating Damper Actuator TD02/04 TA02/04 TD06/10 TA06/10
Inquiry

PRODUCT INTRODUCTION

Floating/Modulating Damper Actuator

For on/off/floating:

Power supply: AC230V, AC/DC24V, AC120V
Tolerance: 10%
Output torque: 6N.m 10N.m
Run time:30s...150s
Operating power: 6VA(Singal-wire control 15VA)
Standstill power: 1…3VA(Singal-wire control 15VA)
Output angle: 90 (95 Max)
Control signal: 2 point on/off control; 3 & 2 point on/off control
Universal coupling: 10...16mm or 5...11mm
Overload: Automatic
Protection class: IP54
Ambient conditions: -10...+55°C 0...90% RH
Noise level(max) : 40dB(A)
Weight: 0.6...1.2kg

For modulating:
Power supply: AC24V
Tolerance: 10%
Output torque: 6N.m 10N.m
Run time: 30s...150s
Operating power: 6VA
Standstill power: 1...2VA
Output angle: 90 (95 Max)
Control signal: DC0(2)...10V DC0(4)...20mA
Feedback signal: DC0(2)...10V
Universal coupling: 6...16mm or 5...11mm
Overload: Automatic
Protection class: IP54
Ambient conditions: -10...+55°C 0...90% RH
Noise level(max) : 40dB(A)
Weight: 0.8...1.2kg
