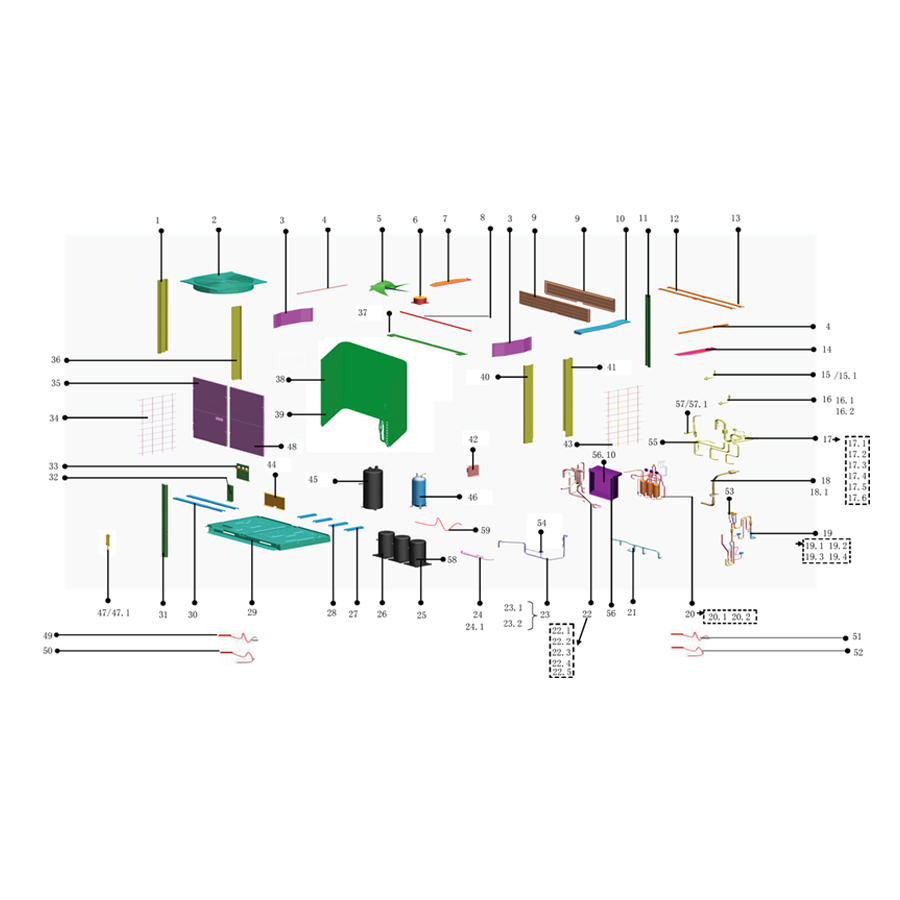

Spare parts for Midea V6, V6-i, VX & VX-i VRF Outdoor
- PART NAME
- DRAW.NO
- model No V6, V6-i, VX & VX-i VRF Outdoor
- Product description: Spare parts for Midea V6, V6-i, VX & VX-i VRF Outdoor
PRODUCT INTRODUCTION
Spare parts for Midea V6, V6-i, VX & VX-i VRF Outdoor
No | Part Name | BOM Code | Model | Qty | After sale code |
1 | DC inverter scroll compressor | 11102020000186 | AA55PHDG-D1Y2 | 2 | |
2 | DC Inverter Scroll Compressor | 11102020000166 | DC80PHDG-D1Y2 | 1 | |
3 | Filter board assembly | 17127000006219 | MDV-900W/D2SN1-8X0.D.1.1 | 2 | |
4 | Module board assembly | 17122300002357 | V-COM335-SMB-A[50A] | 2 | 17122300002357 |
5 | Module board assembly | 17122300002354 | MDV-785W/D2SN1-8X1.D.1.3 | 2 | 17122300002354 |
6 | Module board assembly | 17122300002352 | V-COM500-SMB-A[75A] | 2 | 17122300002352 |
7 | Outdoor main control board assembly | 17127000006496 | V-ECOK900(32)W-SLX-A[V6].D.1 | 1 | |
8 | Outdoor main control board assembly | 17127000006443 | V-ECOK280-SLX-A[V6].D.1 | 2 | |
9 | Outdoor main control board assembly | 17127000006682 | V-ECOK900(32)W-SLX-A[V6].D.1(S) | 1 | |
10 | Outdoor main control board assembly | 17127000006681 | V-ECOK280-SLX-A[V6].D.1(S) | 2 | |
Spare Parts for Midea Outdoor unit, V5X | |||||
11 | DC inverter scroll compressor | 11102020000008 | 无图号 | 1 | |
12 | Inverter module subassembly | 17127000000434 | ME-POWER-50A(PS22A79).D.1 | 2 | |
13 | Inverter module | 17122300000058 | PS22A79 | 2 | |
14 | Power board subassembly | 17127000001164 | MDV-335(12)W/D2SN1-880.D.1.4 | 1 | |
15 | Power board subassembly | 17127000001167 | V-C0DY280-A-A | 1 | |
16 | Filter board subassembly | 17127000000396 | V-C0CS280-MA-A.D[PTC] | 1 | |
17 | Inverter module | 17122300000058 | PS22A79 | 1 | |
18 | Outdoor main control board subassembly | 17127000000012 | V-EOK615-SNB-A.D.1[QBP] | 2 | |
Spare Parts for Midea Outdoor unit, V4+I | |||||
19 | DC inverter scroll compressor | 11102020000011 | 无图号 | 1 | |
20 | Fixed speed scroll compressor | 11102010000301 | 无图号 | 1 | |
21 | Main control board subassembly | 17127000001336 | CE-MDV615W/DRN1-940.D.1.1 | 2 | |
22 | Inverter module | 17122300000058 | PS22A79 | 2 | |
23 | Inverter module subassembly | 17127000004075 | ME-POWER-50A(PS22A79).D.1 | 2 | 17127000004075 |
24 | Filter board subassembly | 17127000004075 | LBB-950.D.1 | 1 | 17127000004075 |
25 | Electronic module control board subassembly | 17127000005076 | DCFAN-ME-POWER-15A(PS21964) | 1 | |
26 | Inverter module | 17127000004053 | DCINV-FAN-15A(PS219A4)(RIVER).D.3 | 1 | 17127000004053 |
27 | Electronic module control board subassembly | 17127000004053 | PS219C4-AST | 1 | 17127000004053 |
28 | Main control board subassembly | 17127000001387 | V-EOK850-S-LE-A.D.1.1 | 2 | |
29 | Filter board subassembly | 17127000000405 | LBB-220.D.2 | 1 | |
Spare Parts for Midea Outdoor unit, V4+S | |||||
30 | DC inverter scroll compressor | 11102020000011 | N/A | 2 | |
31 | Outdoor main control board assembly | 17127000005116 | CE-MDV400(14)W/D2SN1-880.D.1.1(B) | 2 | |
32 | Filter board subassembly | 17127000000393 | MDV-335(12)W/D2SN1-880.D.1.3 | 2 | |
33 | Inverter control board subassembly | 17127000000328 | MDV-335(12)W/D2SN1-880.D.1.2 | 2 | |
34 | Module board assembly | 17127000004053 | MDV-850(30)W/DSN1-950.D.1-5 | 2 | 17127000004053 |
35 | Module board assembly | 17127000004059 | MDV-252(8)W/D2SN1-890.D.1-19 | 2 | 17127000004059 |
36 | Inverter module subassembly | 17127000004070 | ME-POWER-50A(IR341).3 | 2 | 17127000004070 |
37 | DC inverter scroll compressor | 11102020000005 | N/A | 2 | |
38 | Module board assembly | 17127000004074 | MDV-280(10)W/D2SN1-880.D.1-10 | 2 | 17127000004074 |
39 | IPM Module | 17127000004074 | IPM-PS22A78/PIN42 | 2 | 17127000004074 |
40 | Other module subassembly(central) | 17127000004074 | ME-POWER-35A(PS22A78).D.1 | 2 | 17127000004074 |
41 | Power board subassembly | 17127000001164 | MDV-335(12)W/D2SN1-880.D.1.4 | 2 | |
Spare Parts for Midea Outdoor unit, V4+K | |||||
42 | DC inverter scroll compressor | 11102020000011 | 无图号 | 2 | |
43 | DC inverter scroll compressor | 11102020000005 | 无图号 | 1 | |
44 | Fixed speed scroll compressor | 11102010000301 | 无图号 | 1 | |
45 | Outdoor power board subassembly | 17127000000715 | CE-MDV450(16)W/DNS1-881.D.1 | 2 | |
46 | Radiator | 17127000004053 | MDV-280(10)W/DSN1-840(A)-ZJ.D.1-1 | 1 | 17127000004053 |
47 | Power board subassembly | 17127000002021 | MDV-280W/DSN1-891.D.2.2 | 1 | |
48 | Inverter control board subassembly | 17127000000327 | MDV-335(12)W/DSN1-830(A).D.1.1 | 1 | |
49 | Module board assembly | 17122300001341 | ME-POWER-50A(IR341).3 | 1 | |
50 | Inverter module subassembly | 17127000001494 | ME-POWER-50A(IR341).3 | 1 | |
51 | IPM Module | 17127000004070 | IPM-PM50CL1A120/PIN25 | 1 | 17127000004070 |
52 | Outdoor power board subassembly | 17127000000722 | CE-MDV335(12)W/DNS1-881.D.1 | 1 | |
53 | Inverter module | 17127000004052 | ME-POWER-35A(PS22A78)-ZJ.D.1 | 1 | 17127000004052 |
54 | IPM Module | 17127000004052 | IPM-PS22A78/PIN42 | 1 | 17127000004052 |
55 | Inverter control board subassembly | 17127000000315 | MDV-500W/DSN1-880(G).D.1.1 | 1 | |
56 | Module board assembly | 17127000004075 | MDV-280(10)W/D2SN1-890.D.1-3 | 1 | 17127000004075 |
57 | Inverter module subassembly | 17127000004075 | ME-POWER-50A(PS22A79).D.1 | 1 | 17127000004075 |

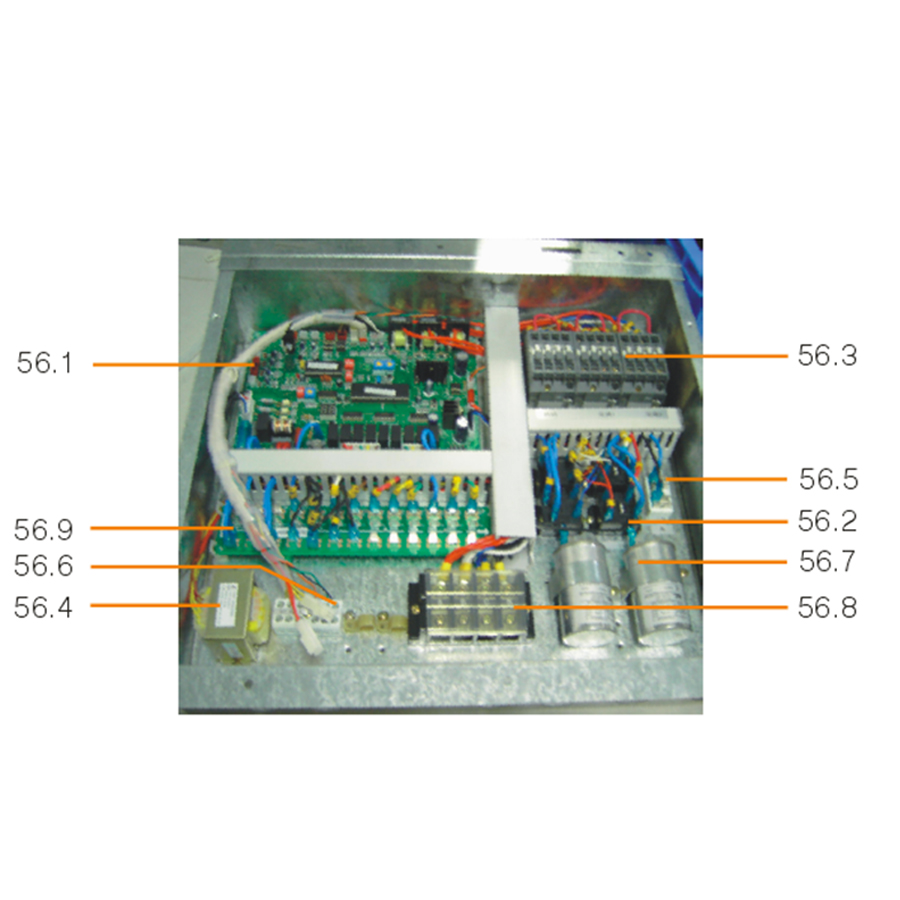

58 | Main circuit installation board | 12227000000703 | MDV-450(16)W/D2SN1-880.D.1-1 | 1 |
