M-interface gateway IMM441V4PA512
- Model No.: IMM441V4PA512
- Certification:ROHS&CE
- Product description: M-interface gateway IMM441V4PA512
PRODUCT INTRODUCTION

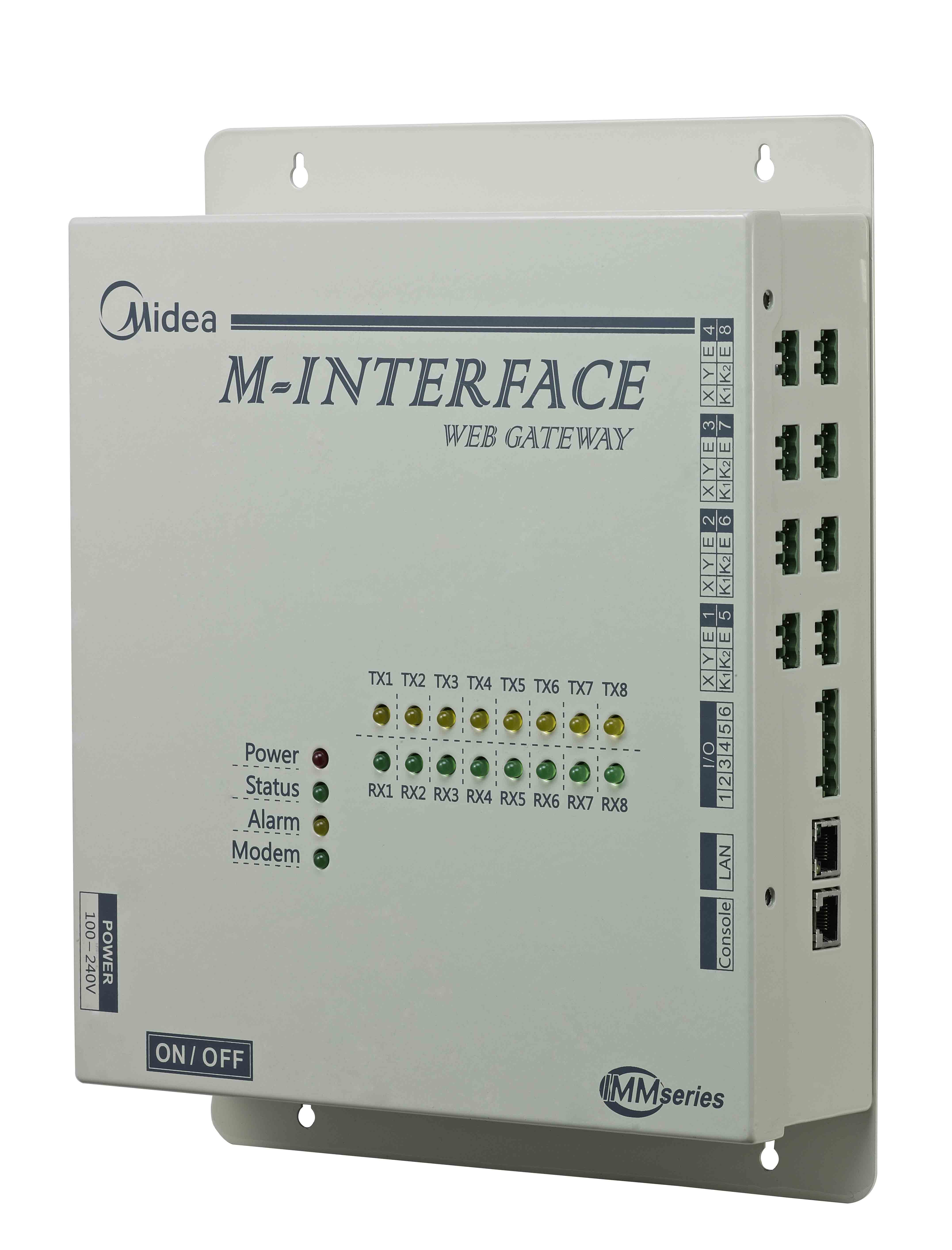

M-interface gateway IMM441V4PA512
M-INTERFACE gateway is used for querying and controls the air conditioning indoor unit, and transmits the
state information of the indoor unit to the computer and transmits the controlling and querying orders sent by
the computer to the indoor unit.
M-INTERFACE Gateway has 8 M-net terminals, 1 LAN terminal, 8 M-net terminal indication lamps, 4 state
display lamps (Power, Status, Alarm, and Modem) and a power switch. Connection to the central air
conditioner system through the M-net terminal, and connects the local area network or Internet network
through a LAN terminal. Computer or other similar devices can visit M-INTERFACE WEB through Brower,
and the local or remote control devices.
Notes: M-Interface gateway needs to be installed at the end of the XYE or K1K2E communication wire,
cannot be installed in the middle of the XYE or K1K2E communication wire. Connection needs to use 0.7mm2~ 1.0mm2 three cores shielded wire.
Gateway structure
Dimensions: 319*251*66.4mm
Detailed drawing of installation holes (Unit: mm)
Installation precautions:
1.Install at a place where should not affect by electromagnetic
wave or dust;
2. Avoid to install at a place where affect by sunshine or heat
source device etc;
3.Avoid to install at a place where has high humidity or can
contact the water;
4.Avoid to install at a place where will produce corrosive or
flammable gas.
WEB home page of M-interface gateway
M-INTERFACE is based on WEB technology, unrelated to computer or similar devices operational systems.
M-INTERFACE insert into the network then can browse the WEB page through the browser of the system
platform, we suggest using IE (9.0 or above), Firefox (11.0 or above), Chrome (18.0 or above) or Safari
M-INTERFACE Network
1) M-INTERFACE gateway can connect to the local area network or Internet network through a LAN terminal.
2) M-net terminals are listed to be two rows, 1 to 4 is XYE terminals, and 5 to 8 is K1, K2 and E terminals.
Computer or other similar devices can visit M-INTERFACE WEB through browser, and the local or remote
control devices.
